ADVICS Co., Ltd. (Head Office: Kariya City, Aichi Pref., President: Dr. Haruhiko Saito) has jointly developed the world’s first Crawl Control with the Toyota Motor Corporation, for Toyota Land Cruiser released on September 18, 2007, realizing drastic improvement in safety and convenience of off-road driving.
‘Crawl Control’ that has been newly developed is a system that supports the driver’s driving control on road surfaces that require delicate speed control, such as sandy area, dirt, rocky roads, snow - covered roads and steep slopes.
Crawl Control automates the acceleration and braking operation by ideally controlling the engine and brake to minimize the wheel skidding as much as possible. With this, the driver can concentrate on the steering wheel operation and enjoy easy driving and at the same time secure safety. Also, the speed selector switch enables selection of the optimum car speed for the road surface (1 to 5 km/h) from 3 levels, offering smooth running over any kind of road surface.
This technology has been realized by adding a newly developed software to the ESC system that utilizes Hydraulic Booster “HB-Ci”* with high brake efficiency and high control response features. In conventional ESC systems, acceleration slowdown control had been done according to the vehicle condition, at the same time as brake control. For this crawl control, an acceleration opening control has been newly adopted to closely integrate the acceleration and brake control. This has made it possible to keep the speed constant at micro low velocity even when riding on rugged terrain.
We, always thinking the ideal figure of a car focusing on the braking technology, wish to continue challenging technical development aiming at reduction of traffic accidents and conservation of global environmental as a supplier of a system providing “safety” to customers around the world and contributing to building safe and comfortable motorized society.
* Brake control modulator with hydraulic brake booster function (developed by ADVICS)
【Description】
1. Function name: Crawl Control
2. Features:
Automatically controls the engine and brake when riding off-roads where
fine speed control is necessary, and reduces driving load by eliminating
the necessity of driver’s acceleration and braking operation, providing
safe and convenient driving performance. Also, the speed selector switch
enables selection of the best matching car speed for the road surface (1
to 5 km/h) from 3 levels to offer smooth running and improved vehicle stability.
【Reference】

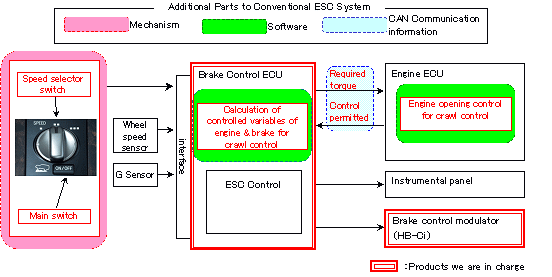

1. System Configuration

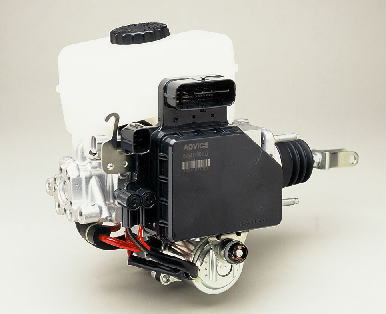

2. Hydraulic Booster(HB-Ci)
